7 Proven Ways to Control Welding Distortion – Simple Guide
In metal welding, uneven heating and rapid cooling cause metal to expand and contract at different rates – and that is exactly what leads to welding distortion. This is a common headache in every workshop. Distortion affects dimensional accuracy, adds straightening costs, and can even scrap expensive parts.
To help you tackle this problem effectively, here are 7 field‑tested methods for controlling weld distortion. They range from simple setup tricks to advanced techniques, so you can pick the right one for your project – or combine several for the best results.
1. Pre‑Set Reverse Deformation (Pre‑Bending)
How it works: Before welding, you deliberately bend or tilt the workpiece in the opposite direction of the expected distortion. When the weld pulls it back during cooling, the two forces cancel each other out – and the final part ends up perfectly straight.
When to use: Best for thicker plates and long butt or fillet welds.
Practical tips:
The pre‑set amount usually needs to be 1.2 to 1.5 times the estimated final distortion – trial pieces help you dial it in.
Use shims or wedges on the welding table to create the reverse angle.
Plain‑English analogy: It is like aiming slightly above the hoop when shooting a basketball – you are compensating for the ball’s natural trajectory so it lands right in the net.
2. Rigid Clamping (Lock It Down)
How it works: Use clamps, jigs, fixtures, or backup bars to firmly hold the workpiece in place on a stiff table. The external restraint physically prevents movement during welding.
When to use: Great for thin sheets, flat panels, and frame structures.
Practical tips:
Distribute clamping points evenly, and tighten them firmly – but not so hard that you dent the material.
Critical rule: Always wait until the workpiece has completely cooled to room temperature before releasing the clamps. If you release too early, the part will spring back out of shape.
Watch out: This method increases residual stress in the part. Avoid it on materials that are sensitive to stress corrosion cracking.

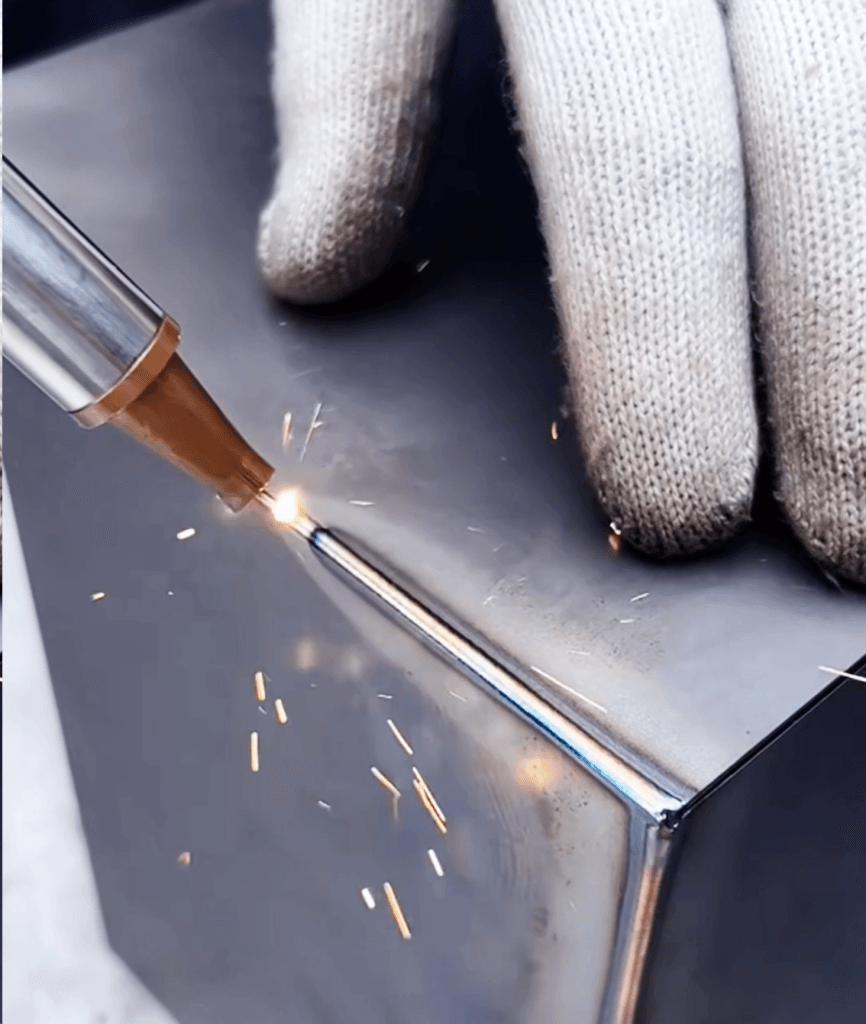

3. Choose the Right Welding Process & Parameters – Less Heat = Less Distortion
How it works: Use welding methods with high energy density (like laser or electron beam) or low heat‑input settings (small current, fast travel speed). A smaller heated zone means less expansion and less shrinkage.
Practical steps:
Prefer MIG/MAG or TIG over manual stick welding – they put in less total heat.
Use small‑diameter wires and multiple thin passes (each layer ≤ 3–4 mm thick) instead of one thick, heavy pass.
Keep current and voltage at the lowest level that still guarantees full penetration.
Golden rule: The less heat you put into the joint, the less distortion you will get – as long as the weld is fully fused.
4. Plan the Assembly & Welding Sequence – Use the Part’s Own Stiffness
How it works: If you fully assemble the structure before welding, the whole frame becomes stiffer and resists movement better than if you weld each piece as you go. Also, by arranging the order and direction of welds, you can make distortions cancel each other.
Recommended practices:
Weld joints that shrink the most (like butt welds) first, then those that shrink less (like fillet welds).
Always start from the middle and work outward – never weld from one end straight to the other.
For long parts, welding in short sections gives much less distortion than one continuous run.
5. Use Staggered, Skip, Symmetrical & Back‑Step Welding – Spread the Heat
How it works: These four techniques all do the same thing – they break a long weld into short, separate segments and weld them in a scattered order. This prevents heat from building up in any single spot.
What each one means:
Staggered / Segmental welding: Divide a long weld into 300–500 mm sections. Weld one section, let it cool, then weld the next.
Skip welding: Jump around – weld section A, then section C, then section B.
Symmetrical welding: Weld on opposite sides of the part at the same time (with two welders or alternately), so forces pull against each other.
Back‑step welding: Start at the end of the weld and work backwards in short segments – very effective for multi‑layer thick plates.
Bottom line: These techniques are excellent for straight long seams, circular welds, and large structural frames.
How it works: Place copper blocks, wet asbestos cloth, or apply compressed air or water cooling next to the weld zone. This rapidly draws heat away, shortens the time the metal stays hot, and reduces thermal distortion.
When to use: Thin sheets, easily distorted parts, or when you need a fast turnaround.
⚠️ Important warning:
Never use forced cooling on steels with a high hardenability (like high‑carbon or certain alloy steels). Rapid cooling can cause cold cracking – which ruins the weld completely.
If forced cooling is absolutely necessary for these materials, you must preheat the part and keep the interpass temperature high enough to prevent cracking.
7. Peening (Hammering) the Weld – Stretch It to Compensate for Shrinkage
How it works: During welding (typically before the final layer), you gently tap the weld bead with a round‑nosed hammer. This slightly stretches the weld metal – which replaces the length that would be lost when it cools and shrinks.
Correct technique:
Only peen the middle (filler) layers.
Never peen the root pass (it can crack) or the final cap pass (it ruins the surface finish).
Use light, rapid, even taps – no deep dents.
Peen immediately after welding while the metal is still warm, then run the next pass right away.
Skill note: Peening takes practice. It is a great tool for experienced welders, but beginners should get hands‑on coaching before using it on production parts.
Final Advice: Combine Methods for Best Results
No single technique works perfectly on its own. In real‑world production, the best way to control distortion is a combination – for example:
Reverse deformation + rigid clamping + symmetrical welding, or
We strongly recommend running test pieces before full production. Record the distortion values for each combination and build your own shop‑specific process table. That way, you will get consistent quality, fewer repairs, and faster turnaround.
